우창정공> PRODUCTS > 스트리퍼 볼트

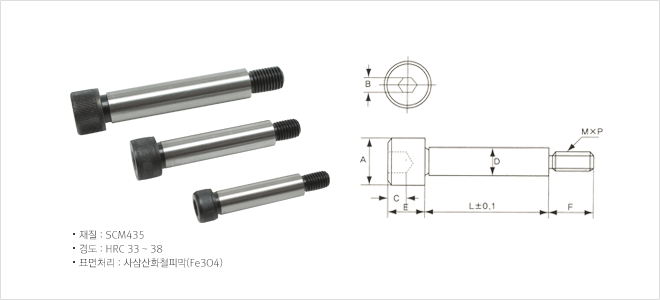

De9 A B C E F M X P
6 -0.020
-0.050		 9 3 2 4 7 4 X 0.7
6.5 -0.025
-0.061		 10 4 2.5 5 9 5 X 0.8
8 13 5 3 6 9 6 X 1.0
10 16 6 4 8 12 8 X 1.25
13 -0.032
-0.075		 18 8 5 10 16 10 X 1.5
16 24 10 7 14 18 12 X 1.75
20 -0.04
-0.092		 27 14 9 18 24 16 X 2.0

TYPE D L
MSB 6 10 15 20 25 30 35 40 45
                                 50 60 70 80
6.5 10 15 20 25 30 35 40 45
                                 50 55 60 65 70 75 80
8 10 15 20 25 30 35 40 45
                                 50 55 60 65 70 75
                                                          80 90 100
10     15 20 25 30 35 40 45 50
10                                  55 60 65 70 75
                                                          80 85 90 95 100
                                                                                110 120 130 140 150
13         20 25 30 35 40 45 50 55 60
   15                                       65 70 75 80 85 90 95 100
                                                                                 105 110 115 120 130
                                                                                                              140 150 160
16         20 25 30 35 40 45 50 55 60 65
                                                    70 75 80 85 90 95 100
                                                                                 105 110 115 120 125 130 140 150
                                                                                                                                160 170 180
20                30 35 40 45 50 55 60
                                               65 70 75 80 85 90 95 100
                                                                                  105 110 115 120 125 130
                                                                                                                     135 140 145 150
25 기타 규격 주문생산
